Design inputs

Everything the design engine uses that isn't the shape of the wall: the soil, the design method, the parameters and the errors it raises. This is the page where your judgment matters most.

Updated 4 minApplies to: Retaining WallFeedback →

The Design tab holds four collapsible groups, top to bottom.

Soil Properties · Design Methodology · Top of wall · Parameters

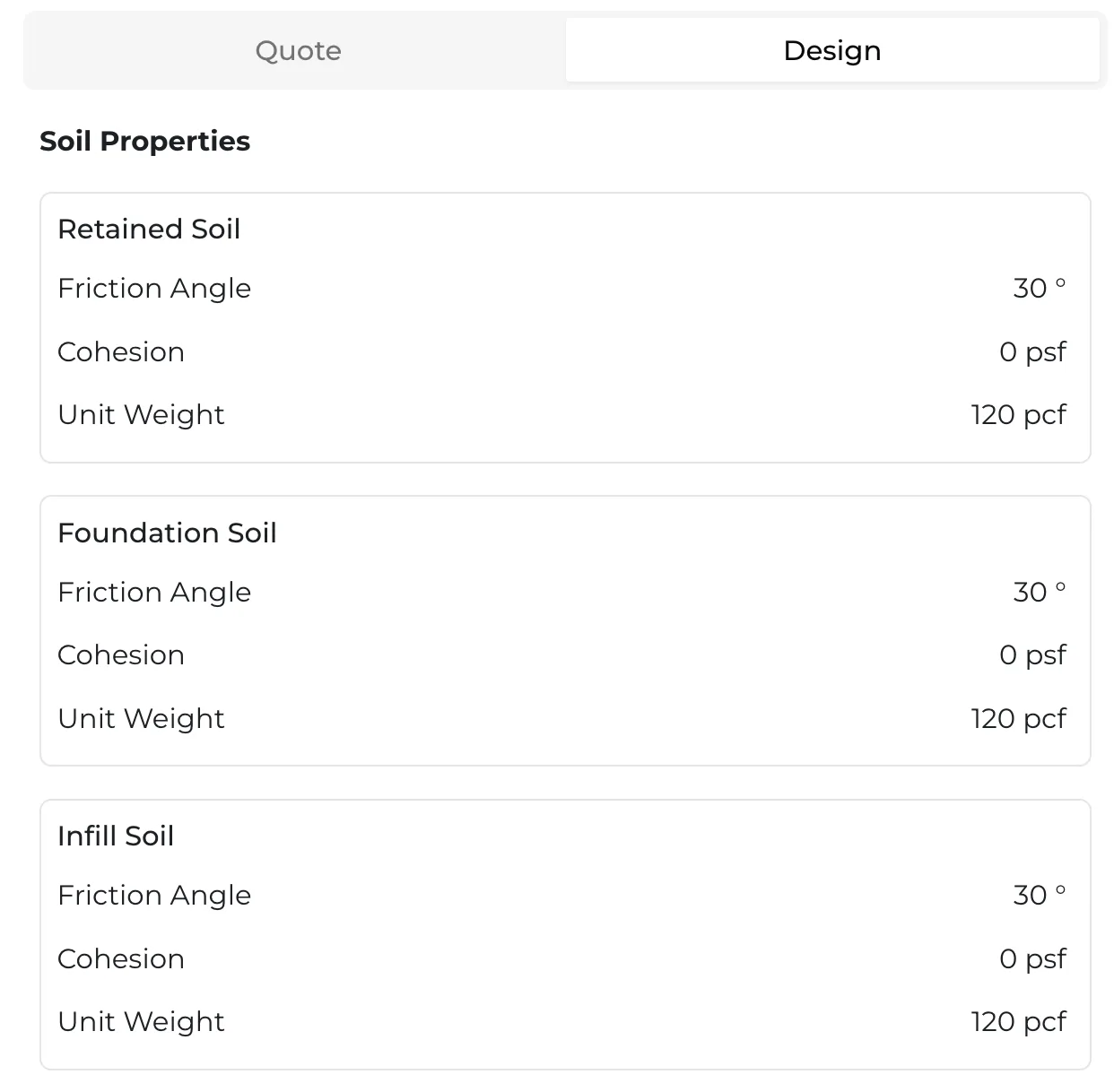

The Design tab, with every group open.

Soil properties

Soil Type switches between the wall's three soil zones — Retained, the soil the wall holds back; Foundation, the soil it sits on; and Infill, the fill placed in and behind the units. Pick a zone to see and edit its Friction Angle and Unit Weight. The sample's Retained soil is 30° and 120 pcf.

Good to know — It is your responsibility to determine the correct soil conditions and parameters. Struction designs against the numbers you give it; it does not know your site.

Design methodology

Design Method names the standard the wall is checked against: LRFD (Load and Resistance Factor Design) or NCMA (National Concrete Masonry Association). Click it to switch. Walls from a geogrid-reinforced (MSE) product suite are checked to NCMA only, so LRFD isn't offered for them. The info icon beside the method explains it in the product's own words:

> NCMA (Allowable Stress Design) applies a single global factor of safety against driving forces — typical of segmental retaining wall design per the NCMA SRWall manual.

> LRFD applies separate load and resistance factors so that factored demand stays below factored capacity (γ·load ≤ φ·resistance) per AASHTO.

Preset chooses where the factors come from: one of the presets for that method (the default is marked (Default)) or Custom Factors — user-defined load factors. Useful when project specs deviate from the AASHTO defaults.

Under that are the factors themselves. With NCMA they're the three Safety Factors. With Custom Factors, each shows its typical value beside the box so you can see how far you've moved from it:

FactorTypicalOn the sample
FS (Sliding)1.501.5
FS (Overturning)2.002
FS (Bearing)2.502.5

With LRFD the group reads Load Factors instead, with the preset's limit state above them: γDC (Dead Load), typically 1.25–1.50; γEV (Vertical Earth), 1.35; γEH (Horizontal Earth), 1.50; and γLS (Live Surcharge), 1.75.

Design Method · Preset · the three safety factors with their typical values
Design methodology: the standard, the preset, and the three factors.

Top of wall

Four controls for how the wall finishes:

  • Use Caps — a checkbox, off on the sample.
  • Use End Units — a checkbox, on.
  • Max Top Grade Exposure — 1 ft here.
  • Offset Y — 0 ft.

Parameters

  • Setback Angle — how far the face of the wall leans back from vertical. It starts from the product's own setback and is shown as the computed value and the one in force, 6.34 → 6.3°, so you can see when you've overridden it. Anything from 0° to 45°.
  • Base Friction Angle — the friction between the base of the wall and the soil it sits on. The sliding check uses it to work out how hard the base resists being pushed out; 37° on the sample.
  • Variable Embedment — a checkbox, off on the sample. Tick it and the Embedment box goes away: the wall is buried by 10% of its height wherever it stands, and never less than 0.5 ft, instead of by one fixed depth.
  • Embedment — 0.5 ft, the default, when Variable Embedment is off.
  • Offset X — 0 ft.

Applying what you changed

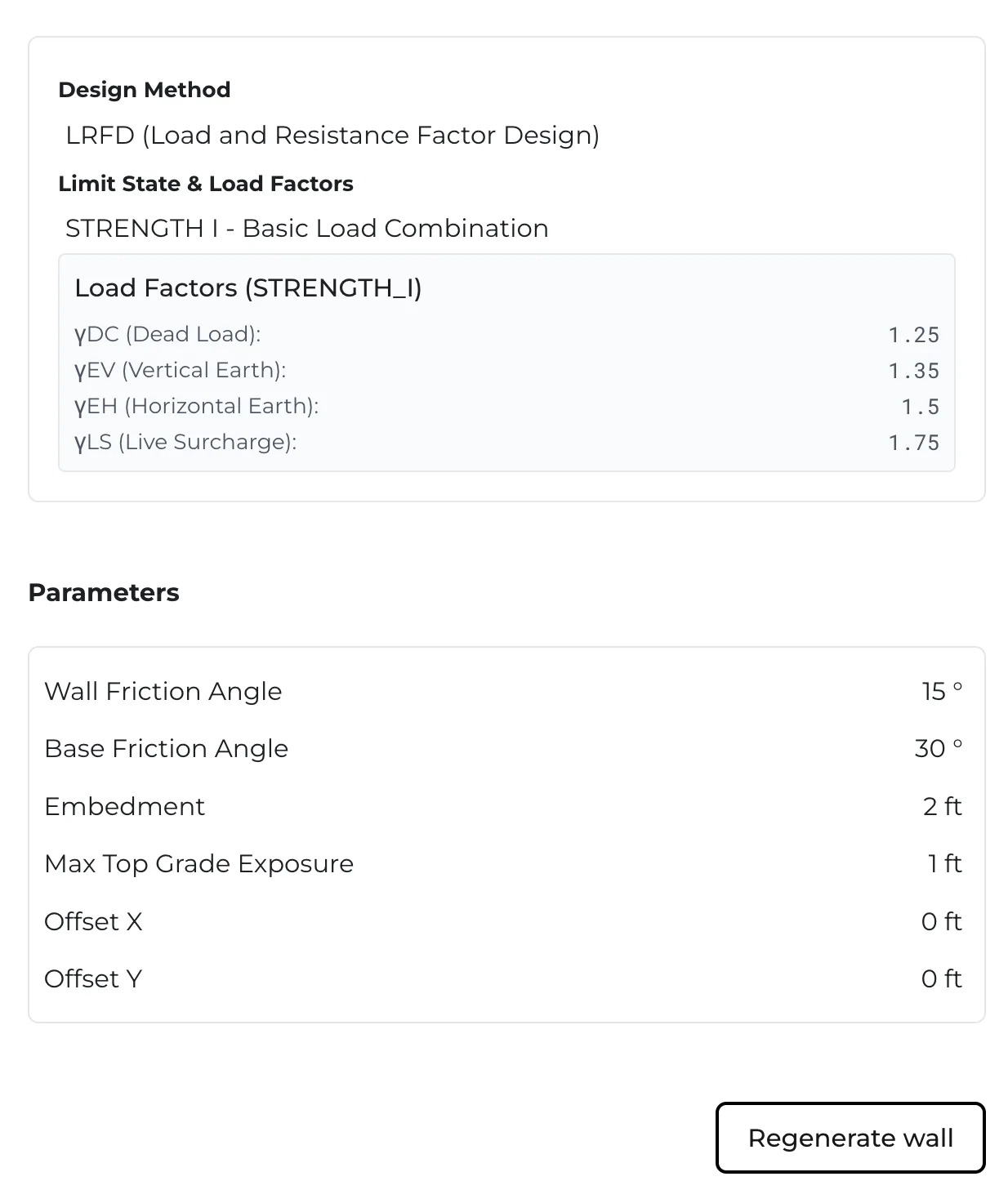

Three buttons sit under the groups: Discard Changes, which appears once you've edited a field and puts every field back, Update blocks and Regenerate wall.

Regenerate wall saves what you changed and builds the wall again from scratch: every block is laid out afresh, so anything you moved, replaced or deleted by hand on the canvas is lost. Update blocks keeps the layout — every block stays the same size and in the same place — and re-picks the block types from the analysis results.

Good to know — Regenerating throws away hand edits on the canvas. If you've adjusted units by hand and only want the block types brought in line with the analysis, use Update blocks instead.

Tip — Change one thing at a time and regenerate. Changing soil, method and embedment together and then finding the wall passes tells you nothing about which change did it.
